11ax 1800Mbps Dual Band Ceiling Wireless Access Point ——AX840-P5

GZ-AX840-P5

Product Description:

  • WiFi 6 Wireless Access Point 1800Mbps Dual-Band Wave2.0 DDR3L 1GB support 2x2 MU-MIMO, dual band 1800Mbps data rate, IPQ6000 industrial chipset.

  • High power design, high gain antenna, more wireless coverage.

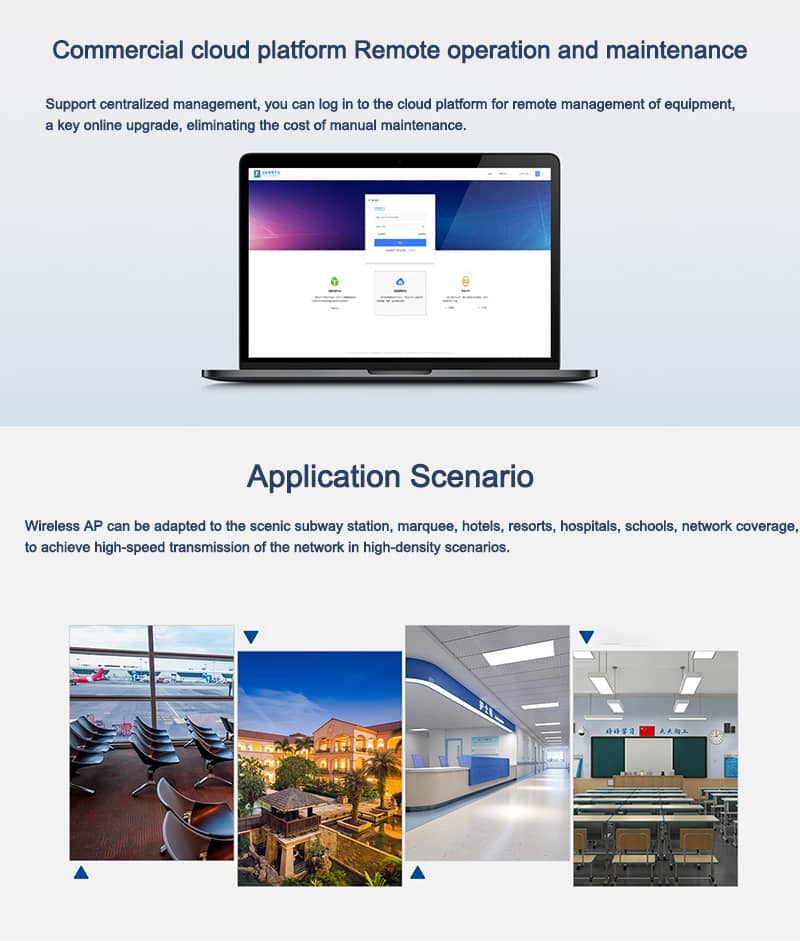

  • Work with AP controller and cloud server.


Return list

Features and Benefits Parameter Product Structure Application Topology

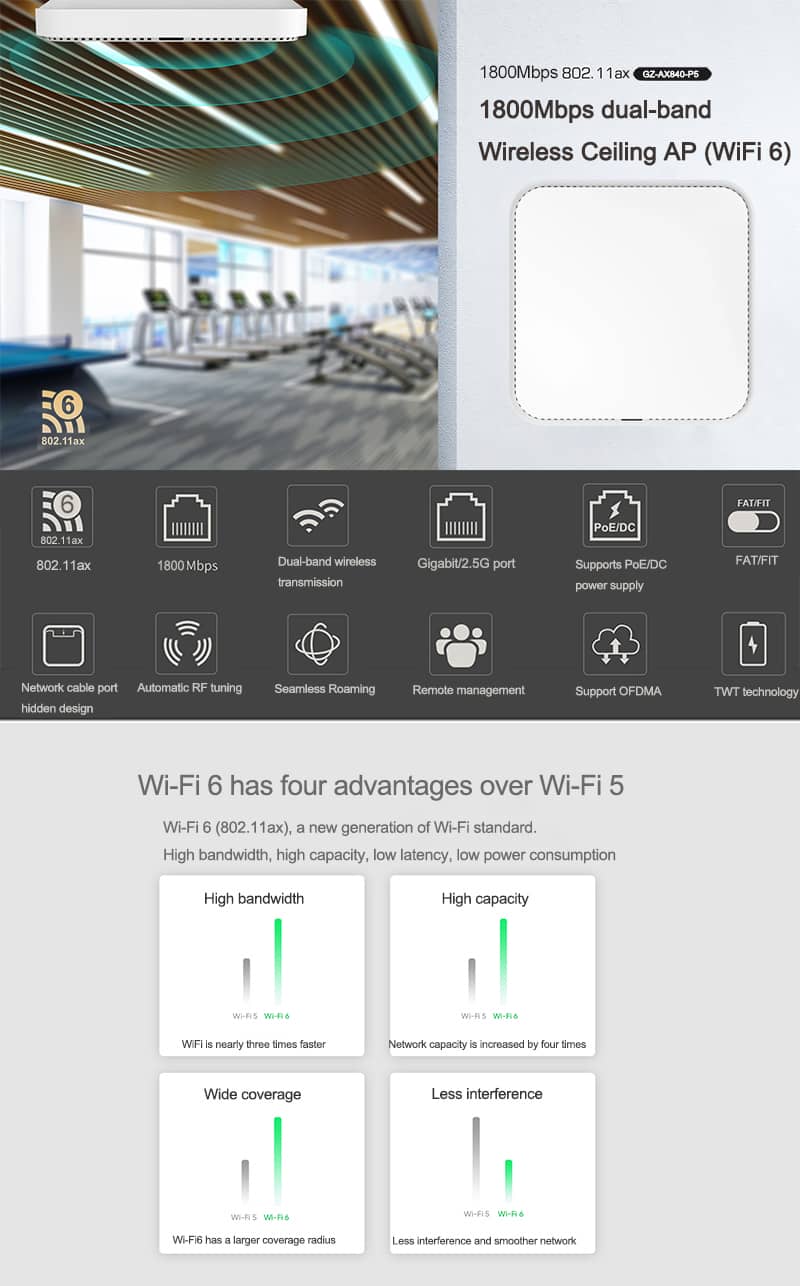

WiFi 6 Wireless Access Point 1800Mbps is an 11ax Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.

Combined 1800Mbps Wi-Fi speed voer 2 radios: 2.4GHz(600Mbps 11ax 2*2)+5GHz(1200Mbps 2*2), equipped 1G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same tim, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.


Main Features:


· Comply with IEEE 802.11ax/ac/b/g/n, dual band,1800Mbps Data Rate

· With IPQ6000 , Flash: SPI NOR 8MB (1.8v) + NAND 256MB, greatly improved the data processing performance.

· 1*10/100/1000Mbps WAN Port,1*10/100/1000Mbps LAN Port, faster Ethernet.

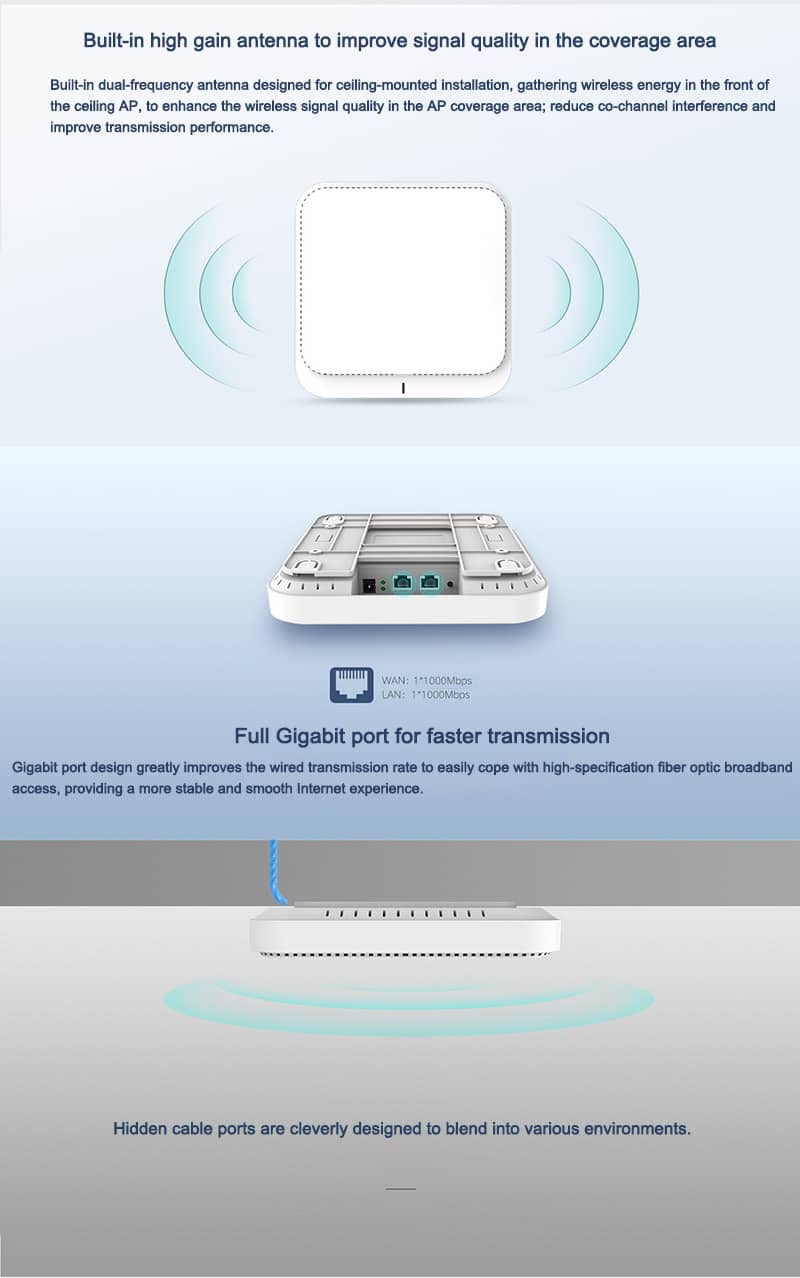

· With Skyworks power amplifier and FEM, 300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverag

· Support activeIEEE 802.3at 48V PoE standard

· Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

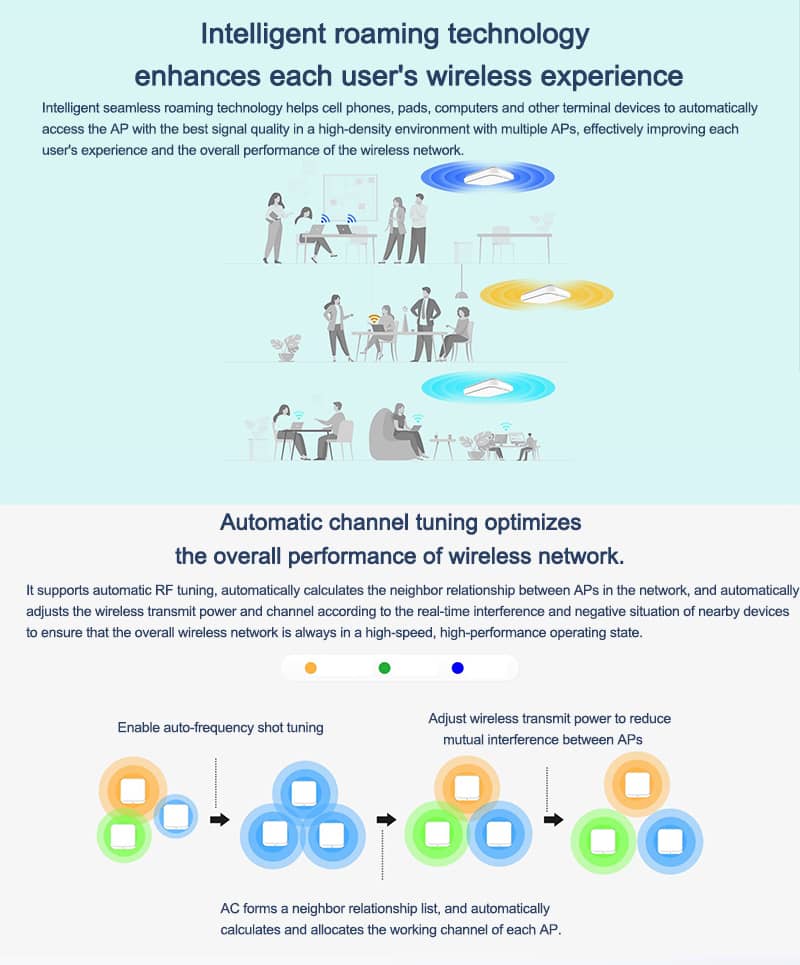

· Support Seamless Roaming, OFDMA,1024-QAM

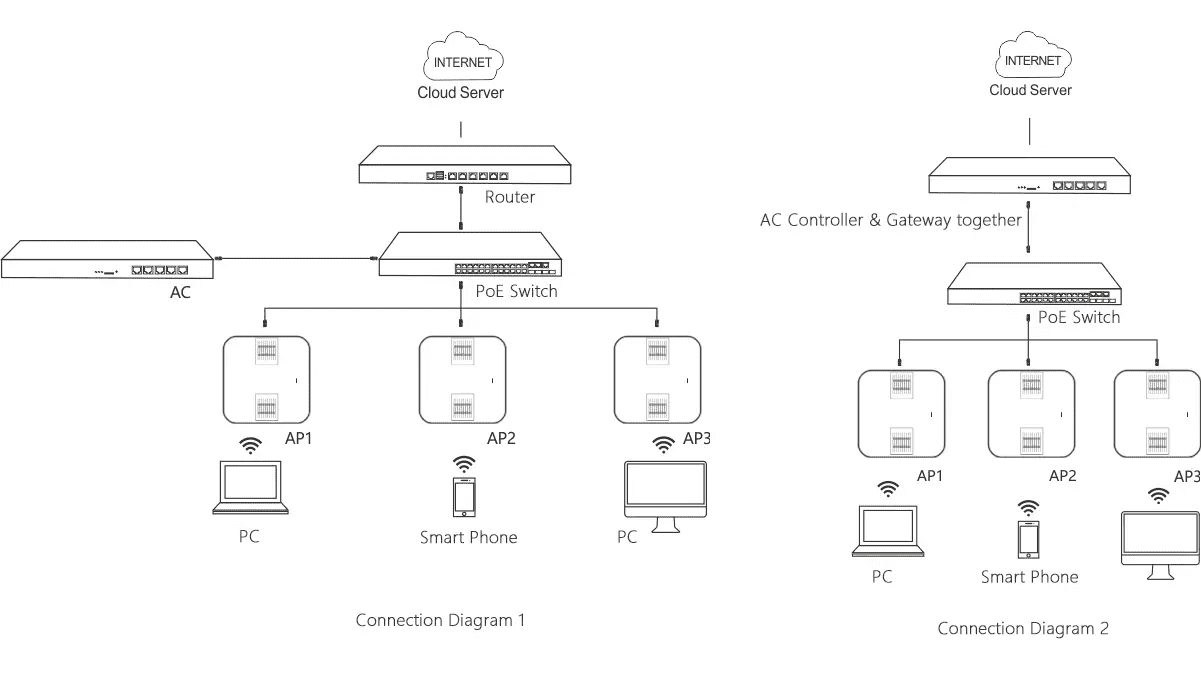

Working Diagram

Access Point Working Diagram
