11ac 1300Mbps Dual Band Ceiling Wireless Access Point ——AP740


Product Description:

  • WiFi 5 Wireless Access Point 1300Mbps compliant with 11ac standard, dual band, 1300Mbps indoor wireless access point.

  • Qualcomm IPQ4019 chipset, high power high gain antenna, more range.

  • Fit/Fat AP, AP controller central managed; Can access into cloud for remote management.

Return list Download

Features and Benefits Parameter Product Structure Application Topology


WiFi 5 Wireless Access Point 1300Mbps Dual-band Wave2.0 is an 11ac Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0 and Seamless Roaming.

Combined 1300Mbps Wi-Fi speed over 2 radios: 2.4GHz(400Mbps)+5GHz(900Mbps), equipped Gigabit WAN & LAN ports, fast Ethernet data rate make more than 100 end users can access into AP740 with faster Ethernet, make them to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...


High Power for more range and stable signal

Designed in Power Amplifier on PCB board, the power can be 300mW high power, 3dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable Wi-Fi signal for users.


Metal Case, perfect heat dissipation to extend the working life

The bottom shell with metal material, improved the heat dissipation function, work as normal in -30°C to 70°C, can be installed in almost environment, and extend the device working life.


MU-MIMO, Wave2.0 Technology

Comply with Wave2.0 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 8 Spatial Steams, greatly to improved the communication efficiency.


Beamfrorming, DFS, 5G Prior, Seamless Roaming, OFDM support

AP740 support many functions like Beamfrorming, DFS(Dynamic Frequency Selection), Airtime Fairness, Band Steering ( 5G Prior), 11kvr Seamless Roaming, OFDM(Orthogonal Frequency Division Multiplexing), RF Power adjustable to improve the performance and Wi-Fi stability.


Power over Ethernet and DC Power available

AP740 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. What’s more, it support DC input if need, So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.


Access Controller System & Cloud Management System

With Access Control System, plug and play, zero configure the AP’s IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....

What’s more, the AC controller with local authentication function, easy to do advertisement and captive portal authentication like Member/WeChat/SMS login.

Besides that, administrator can remote manage the AC controller or wireless AP at any place/time, simple and cost save in maintenance.


Main Features:

  1. Comply with IEEE 802.11ac/b/g/n, dual band, 1300Mbps Data Rate

  2. With IPQ4019 CPU, 4 core, greatly improved the data processing performance.

  3. 1*10/100/1000Mbps WANPort, 1*10/100/1000Mbps LAN Port, faster Ethernet.

  4. With Skyworks power amplifier and FEM, 300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverage, 32M Flash, 512M DDR3RAM, more user, more stable

  5. Support activeIEEE 802.3at 48V PoE standard

  6. Support SSID broadcasting, Multi SSID up to 8(4 SSID in 2.4GHz, 4 SSID in 5GHz)

  7. Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP multiple operation mode

  8. Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

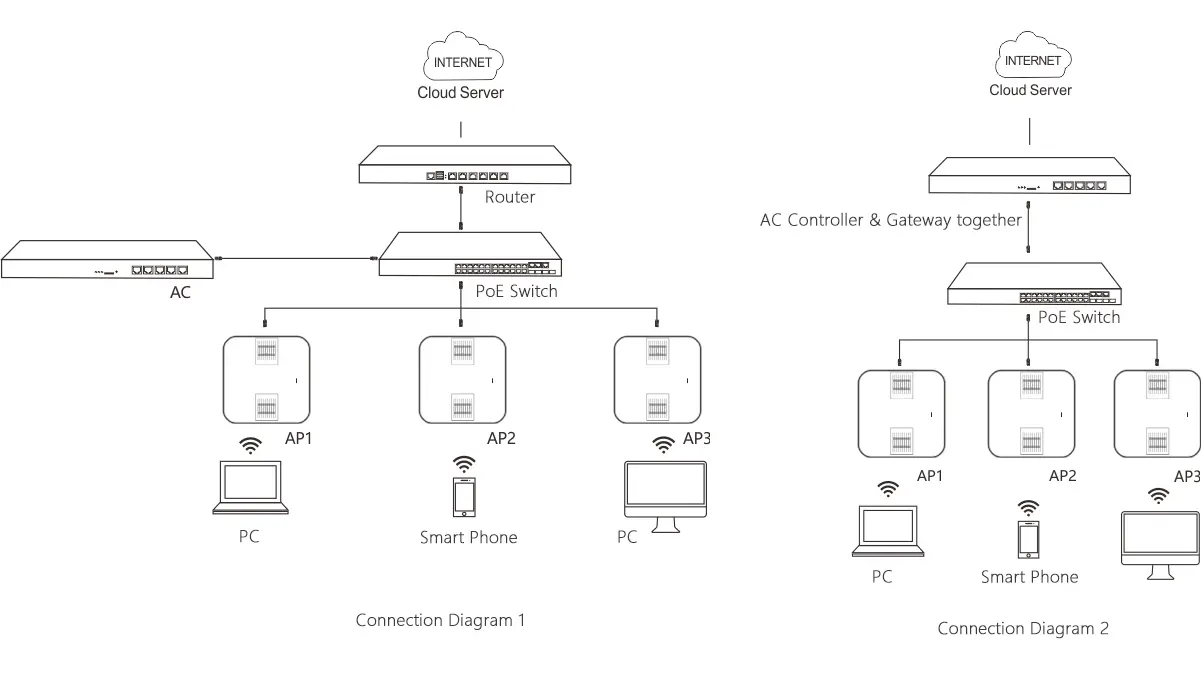

Working Diagram


 Access Point Working Diagram
