11ac 1200Mbps Dual Band Ceiling Wireless Access Point ——AP520


Product Description:

  • WiFi 5 Wireless Access Point 1200Mbps Compliant with IEEE802.11ac standard, dual band, 1200Mbps data rate.

  • Qualcomm chipset allow 100+ users access.

  • AP controller central management, cloud remote management.

  • OEM or ODM service.

Return list

Features and Benefits Parameter Product Structure Application Topology


WiFi 5 Wireless Access Point 1200Mbps is an 11ac Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support Wave2 , combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, make more than 100 end users can access into it. It is an economic option for hotel, school, restaurant or other enterprise place.


FIT/FAT Operation Mode

GZ-AP782 support FIT/FAT operation mode;

If FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.

If FAT AP, support AP, repeater, gateway, WISP operation mode, can be configured by GUI, suit for home mostly.


Wave 2 MU-MIMO Technology

With Wave 2 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 4 Spatial Steams, greatly to improved the communication efficiency.


Power over Ethernet

GZ-AP782 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.


Zero Configure & Cloud Management System

Support FIT/FAT AP together, work with Yunlink WLAN Controller, zero configure in IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.... Besides that, it support advertisement and authentication functions like WeChat/Google/SMS/Facebook/Member Authentication.


Then the WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more professional and cost saved in Wi-Fi Projects.

Main Features:

  1. Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate, 2x2 MIMO Technology

  2. 1*10/100/1000Mbps WANPort, 1*10/100/1000Mbps LAN Port, faster Ethernet.

  3. Support activeIEEE 802.3af 48V PoE standard

  4. Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)

  5. Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode in FAT AP

  6. With function of build in firewall, IP filter, URL filter and MAC filter

  7. Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

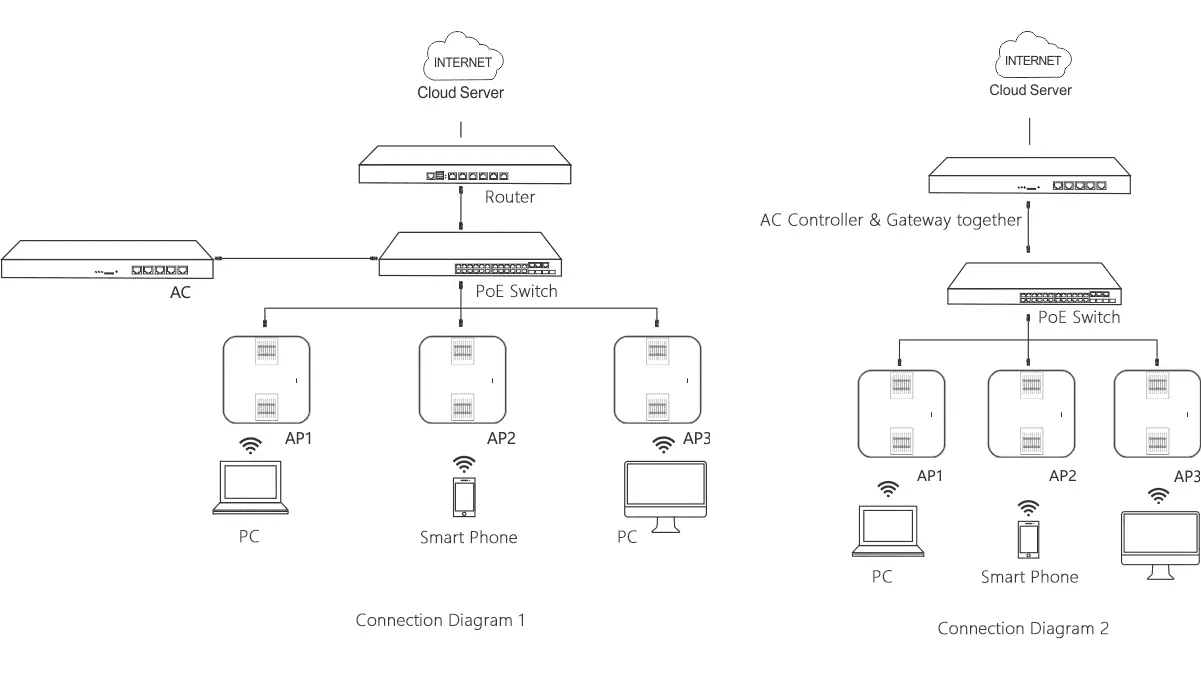

Working Diagram

  Access Point Working Diagram
