11ac 1200Mbps Dual Band Ceiling Wireless Access Point ——FAP780S-P2


Product Description:

WiFi 5 Wireless Access Point1200Mbps Dual-band Wave2 high power ceiling wireless AP,MTK chipset with Gigabit WAN & LAN ports,Work with AP controller, plug and play,Work with cloud server for remote management.

Return list Download

Features and Benefits Parameter Product Structure Application Topology


WiFi 5 Wireless Access Point1200Mbps Dual-band Wave2 is an 11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset supports WAVE 2 MU-MIMO , combined with 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), make more than 80 end users can access into it. It is an economic option for hotel, school, restaurant or other enterprise place.

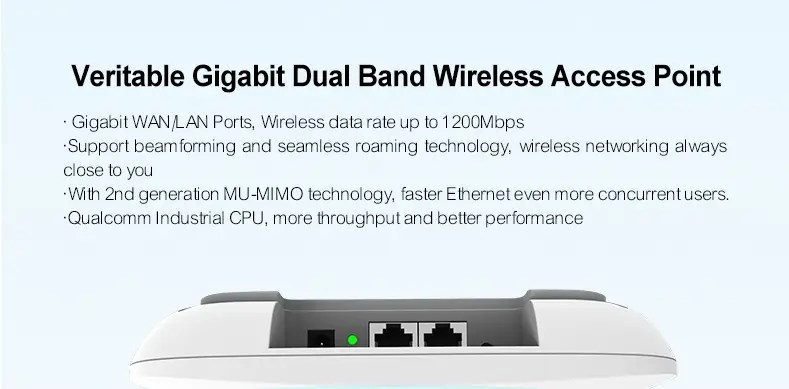

11ac 1200Mbps High Power WiFi5 Ceiling Access Point

FIT/FAT Operation Mode

FAP780S-P2 support FIT/FAT operation mode;

If FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application.

If FAT AP, support AP, repeater, gateway, WISP operation mode, can be configured by GUI, suit for home mostly.


Multiple Protection for Stable Performance

GZ-FAP780S-P2 with ABS fireproof material, white color, suite for various decoration styles.

Besides that, PCB board with watchdog design, can reboot automatically in case of failure.

What’s more, it support ESD protection, can install in various harsh environment.


Power over Ethernet

GZ-FAP780S-P2 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.


Zero Configure & Cloud Management System

Support FIT/FAT AP together, work with Yunlink WLAN Controller, zero configure in IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.... Besides that, it support advertisement and authentication functions like WeChat/Google/SMS/Facebook/Member Authentication.


Then the WLAN controller can access into Cloud Management System, easy to make administrator access it, to do remote monitoring/management at any time and any place, make this AP and WLAN controller more professional and cost saved in Wi-Fi Projects.

Main Features:

1.Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate, 11ac 2x2 MIMO Technology,2*10/1000Mbps Ethernet Ports to meet with different customer’s request.

2.Support active IEEE 802.3af 48V PoE standard

3.Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)

4.Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode in FAT AP

5.With function of build in firewall, IP filter, URL filter and MAC filter

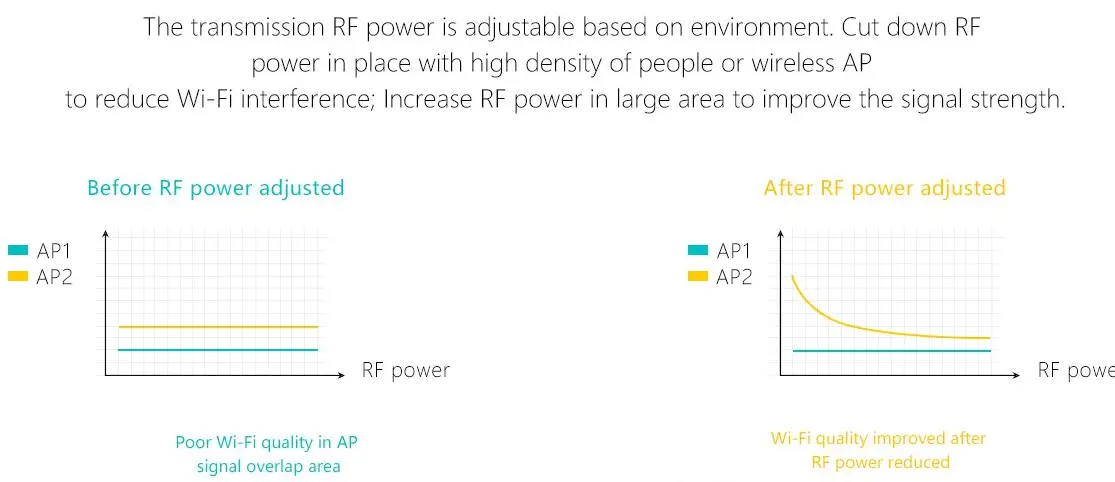

6.Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
