Experience security and speed, without compromise.


Outdoor Access Point Wireless Dual Band 1200Mbps——AC-HD500


Product Description:

  • Wi-Fi 5 Outdoor Wireless Access Point 1200Mbps Dual-Band With Panel antenna Comply with IEEE 802.11ac standard, dual band, 1200Mbps data rate;

  • 300mW high power, 7dBi panel antenna, more range;

  • Qualcomm industrial design with Gigabit RJ45 port

  • IP65 water-proof level, ESD and Surge protection

  • Cloud access and management

Return list

Features and Benefits Parameter Product Structure Application Topology

Wi-Fi 5 Outdoor Wireless Access Point 1200Mbps Dual-Band With Panel antenna is the 1200Mbps high power industrial use Outdoor wireless access point with 120°directional antenna. Comply to the next generation 802.11ac Wi-Fi standard, support 2x2 MU-MIMO technology, it is dual band, 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

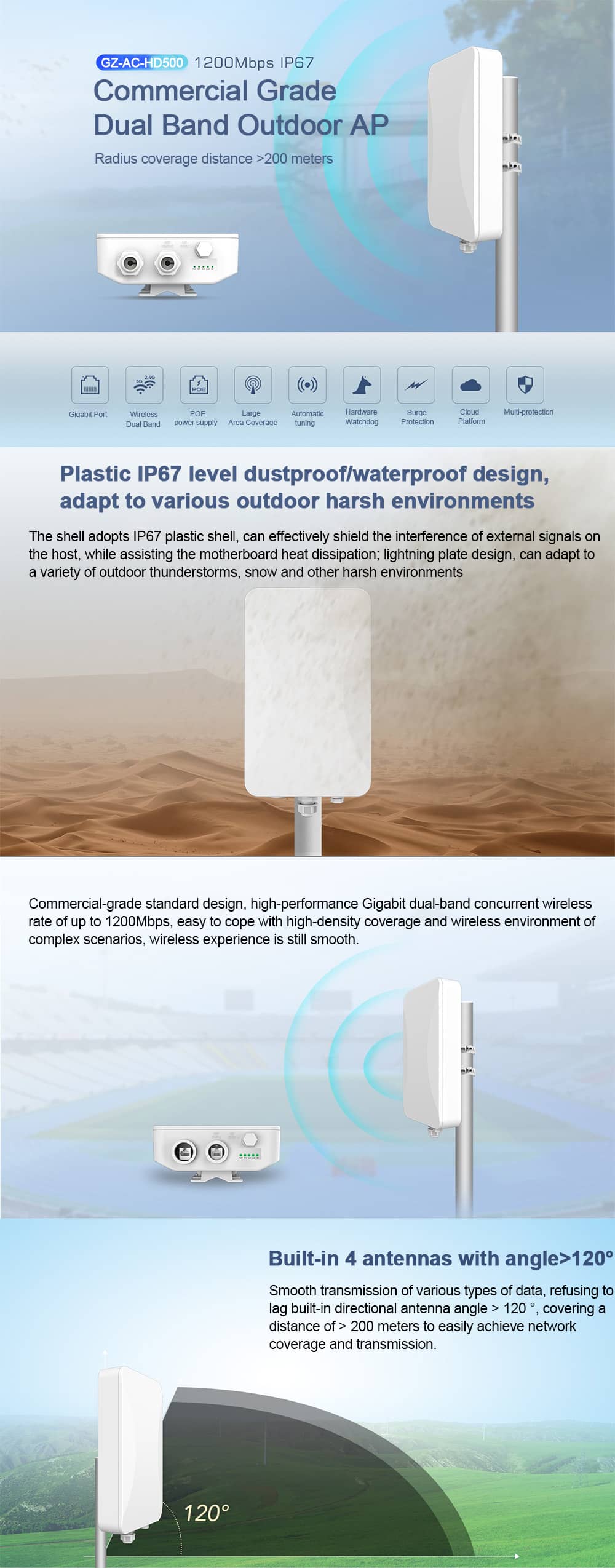

Professional outdoor shell design,IP65 dust proof/water proof level.

Adopt ABS outdoor engineering plastic shell and industrial components,to provide IP65 level water proof ,dust proof and lightning protection,adapt to wind,sun,thunderstorm,snow and freeze or other adverse environments,even in extreme high and low temperature(-40℃ -  +70℃)environment,can work normally and steadily as well .


High Power, 7dBi directional antenna, more Wi-Fi Range

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, build in 7dBi directional Wi-Fi antenna, outdoor Wi-Fi range up to 200 meters, ensure strong wireless signal and stable performance.


Power over Ethernet

GZ-AC-HD500 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.


MU-MIMO, Wave2.0 Technology

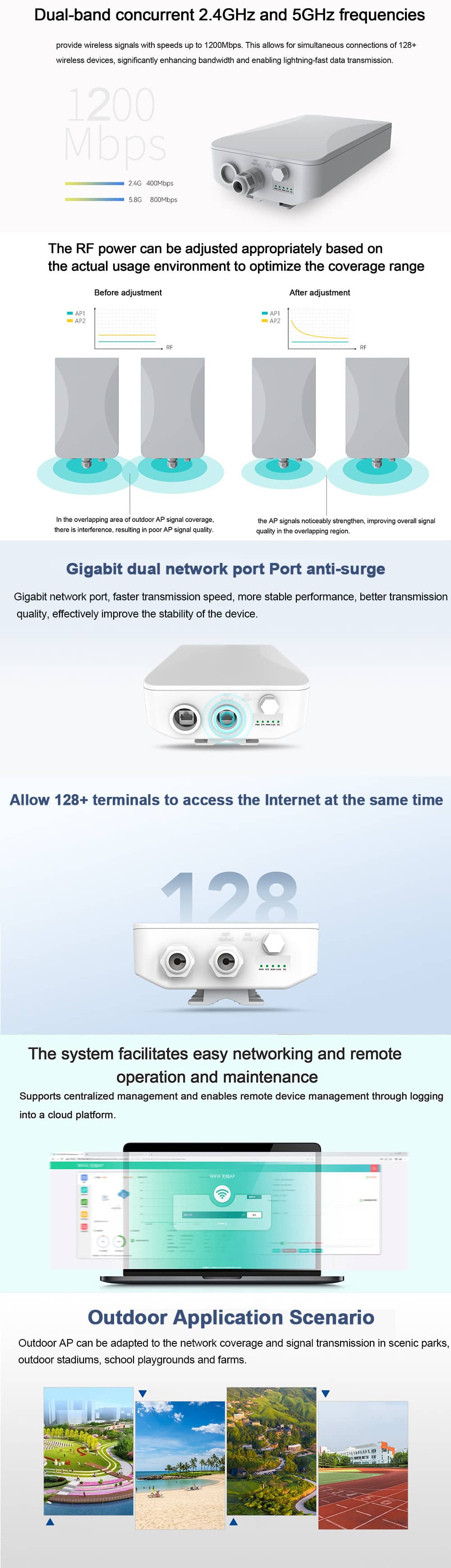

Comply with Wave2.0 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), greatly to improved the communication efficiency.


Beamfrorming, DFS, Airtime Fairness, Band Steering, OFDM support

GZ-AC-HD500 support many functions like Beamfrorming, DFS(Dynamic Frequency Selection), Airtime Fairness, Band Steering ( 5G Prior), OFDM(Orthogonal Frequency Division Multiplexing), RF Power adjustable to improve the performance and Wi-Fi stability.


Access Controller System & Cloud Management System

Work with WLAN controller in wireless AP operation mode,easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....


Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.
