Specifications |
I/O Interface |
Power | DC 5V |
Ethernet | 8*Gigabit RJ45 Ethernet port |
Performance |
Bandplane bandwidth | 16Gbps |
Packet forwarding | 11.9Mpps |
Packet Buffer | 12Kbytes |
MAC Address | 8K |
Jumbo Frame | 9216 bytes |
Transfer Mode | Store and forward |
MTBF | 100000 hours |
Standard |
Network protocol | IEEE802.3 (10Base-T) |
IEEE802.3u (100Base-TX) |
IEEE802.3ab (1000Base-TX) |
IEEE802.3x (Flow control) |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
EMS: EN61000-4-2 (ESD) |
EN61000-4-4 (EFT) |
EN61000-4-5(Surge) |
Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) |
100Base-TX : Cat5 or above UTP/STP(≤100m) |
1000Base-TX : Cat5 or above UTP/STP(≤100m) |
Cetificate |
Safe certificate | CE, FCC, RoHS |
Environment |
Working Environment | Working Temperature: -10~50°C |
Storage Temperature: -40~70°C |
Working Humidity: 10%~90%，non-condensing |
Storage Temperature: 5%~90%，non-condensing |
Working Height: Maximum 10,000 feet |
Storage Heigh: Maximum 10,000 feet |
Physical specifications |

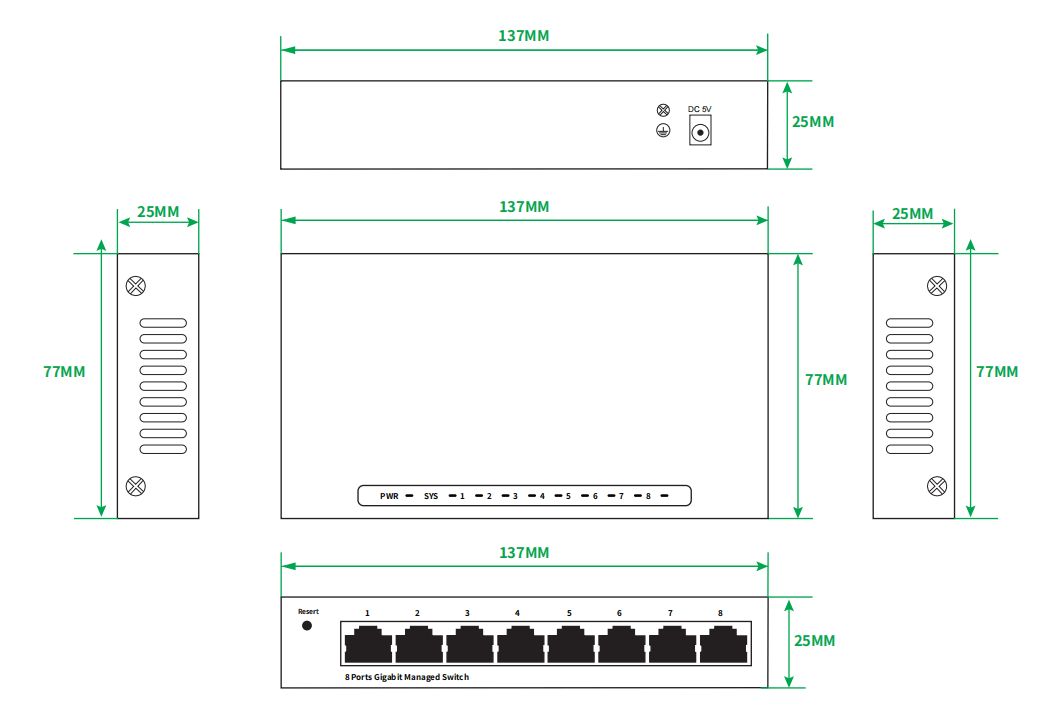

Structure Size | Product Size: 137*77*25mm |
Package Size: 175*120*63mm |
Product Net-Weight: 0.3KG |
Product Gross-Weight: 0.5KG |
Packing Info | Carton size: 505*320*400mm |
Packing Qty: 40 units |
Packing weight: 21KG |
Power Voltage | Adapter input voltage : AC 100-240 V |
Switch input voltage: 5V1A |
Package List | 1 switch, 1 adapter, 1 manual, 1 certificate |
Indication |
LED Indicators | PWR(Power indicator)，SYS(System indicator)，1-8(Link & Data) |
Restart switch | Short press to restart |
Long press 5S to restore factory settings |
Software function |
System | System Information |
IP Address Setting |
User Account Setting |
Port Setting | Enable/disable ports |
Configure the speed, duplex and MTU |
Flow control |
Check the port information |
VLAN | Staatic VLAN |
VLAN Setting |
QOS | Priority selection |
DSCP remapping |
Priority to queue |
Port-based Priority |
Queue Weight |
Configuration | IGMP Enable Setting |
Trunk Group Setting |
Loop Prevention Setting |
Port Mirroring Setting |
Port IsolationSetting |
Bandwidth Control Setting |
Jumbo Frame Setting |
MAC Constraint Action Setting |
Green Ethernet Setting |
EEE Setting |
SNMP Setting |
Security | MAC Table |
MAC Search |
Static MAC |
Storm Control Setting |
Monitoring | Port Statistics |
Cable Diagnostic |
Tools | Firmware Upgrade |
Configuration Backup |
Reset |
Save |
Reboot |
