I/O Interface

Power

AC  input (100 - 240V)

Ethernet

4 Port 10/100M PoE

1 Port 10/100M Ethernet Uplink

Performance

Switching Capacity

1Gbps

Throughput

0.744Mpps

Packet Buffer

448K

MAC Address

2K

Jumbo Frame

2Kbytes

Transfer Mode

Store and forward

MTBF

100000  hour

Standard

Network Protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

IEN61000-4-5 (Surge)

Network Medium

10Base-T : Cat3, 4, 5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

Protection

Security Certificae

CE、FCC、RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~85°C

Working Humidity: 10%~90%，non-condensing

Storage Temperature: 5%~95%，non-condensing

Working Height: Maximum10,000 feet

Storage heigh: Maximum 10,000 feet

Mechanical

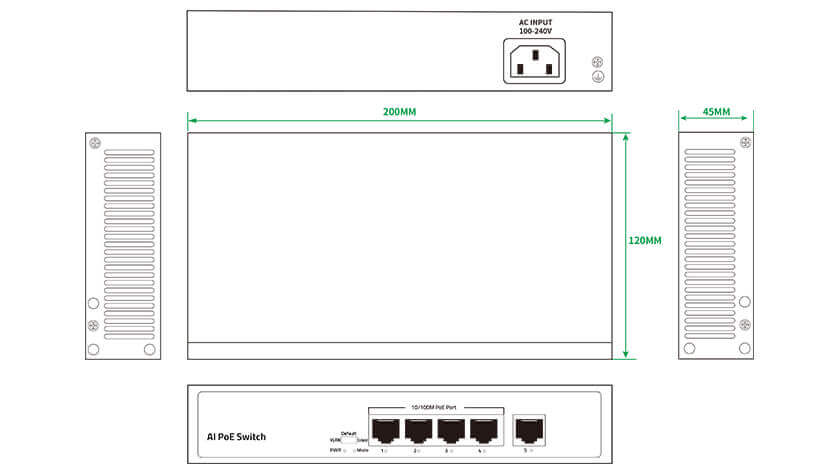

Structure Size

Product Size: 200*120*45mm

Package Size: 245*190*60mm

Product Net-Weight: 0.5kg

Product Gross-Weight: 0.8kg

Packing Info

MEAS: 505*320*400mm

Packing Qty: 20 unit

Packing weight: 17 KG

Power Voltage

Input Voltage: AC 100-240 V

Output Voltage: 52V1.25A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc

Indication

DIP Switch

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed

Extend: Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on

LED Indicators

PWR, SW, 1-5 Link
